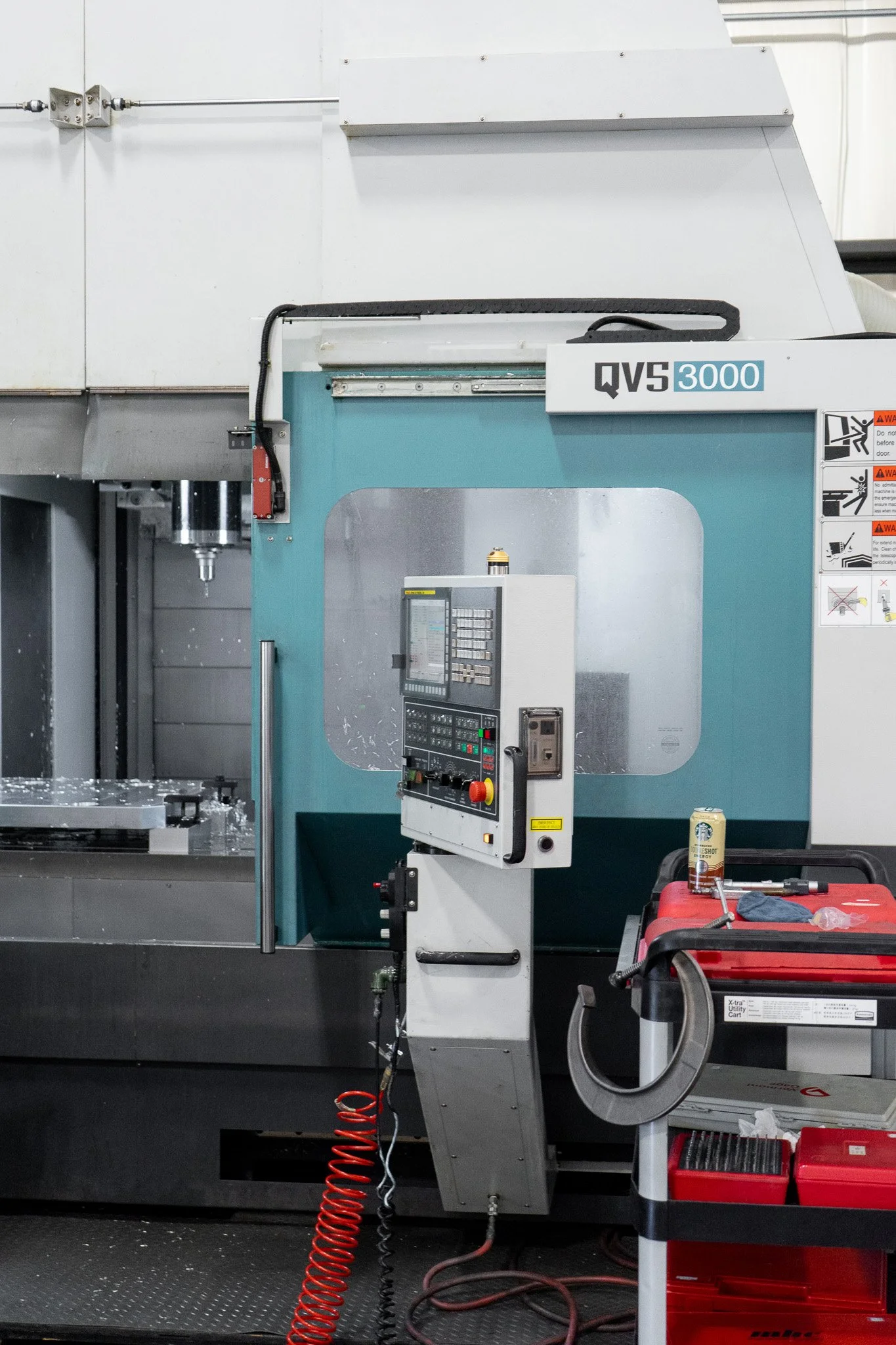

The QV5-3000 is a high accuracy 5 Axis vertical machining center with an A/B Rotary System. The perfect solution for simultaneous 5 axis machining of components with a range of 118.1”x 39.4”.

The QV5-3000 iA/B Rotary System was designed and built in Japan for Selway, by Tsudakoma. For over 20 years the A/B rotary unit has been proven, tested, and improved providing the QV5-3000 a design that is compact, lightweight, with a simple construction. Using the latest engineering technology the QV5-3000 Rotary System delivers outstanding performance, with high rigidity, repeatable accuracy, quality finish, and low maintenance.

Superior Meehanite Cast Iron main body components provide a solid structure ensuring long-term stability.

Inverted “T” structure base design with 3-point support endows the machine with a firm foundation.

X /Y Axes are designed with heavy-duty roller guide ways for supreme stability and precision.

Heidenhain Scale Feedback System delivers the highest accuracy on X,Y,Z axes.

Z Axis box way design supplies the A/B axes with unsurpassed machining rigidity.

60 Tool Magazine is directly fixed to the floor, isolating the tool magazine movement, so that each moving axis can maintain maximum accuracy and finish.

X-Axis Travel: 118.1"

Y-Axis Travel: 39.4"

Z-Axis Travel: 29.5"

Spindle Speed: 12,000 RPM

Spindle Taper: CAT 50

Spindle Motor: 25/30 HP

Tool Magazine Capacity: 60 ATC

Control: Fanuc CNC

Chip Removal: Lift-Up Chip Conveyor with Drum Filter

A/B-Axis Travel: -40~+40 Degree

3-Color Patrol Light: Chip Wash Down System

Disc Oil/Coolant Separator: Dual Nitrogen Balancing Cylinders

Hydraulic Unit and Spindle Oil Cooling System: Interior Work Lamps

Movable Manuel Pulse Generator: Spindle Air Dryer

Spindle Oil Air Lubricator: Z-Axis Motor Brake
