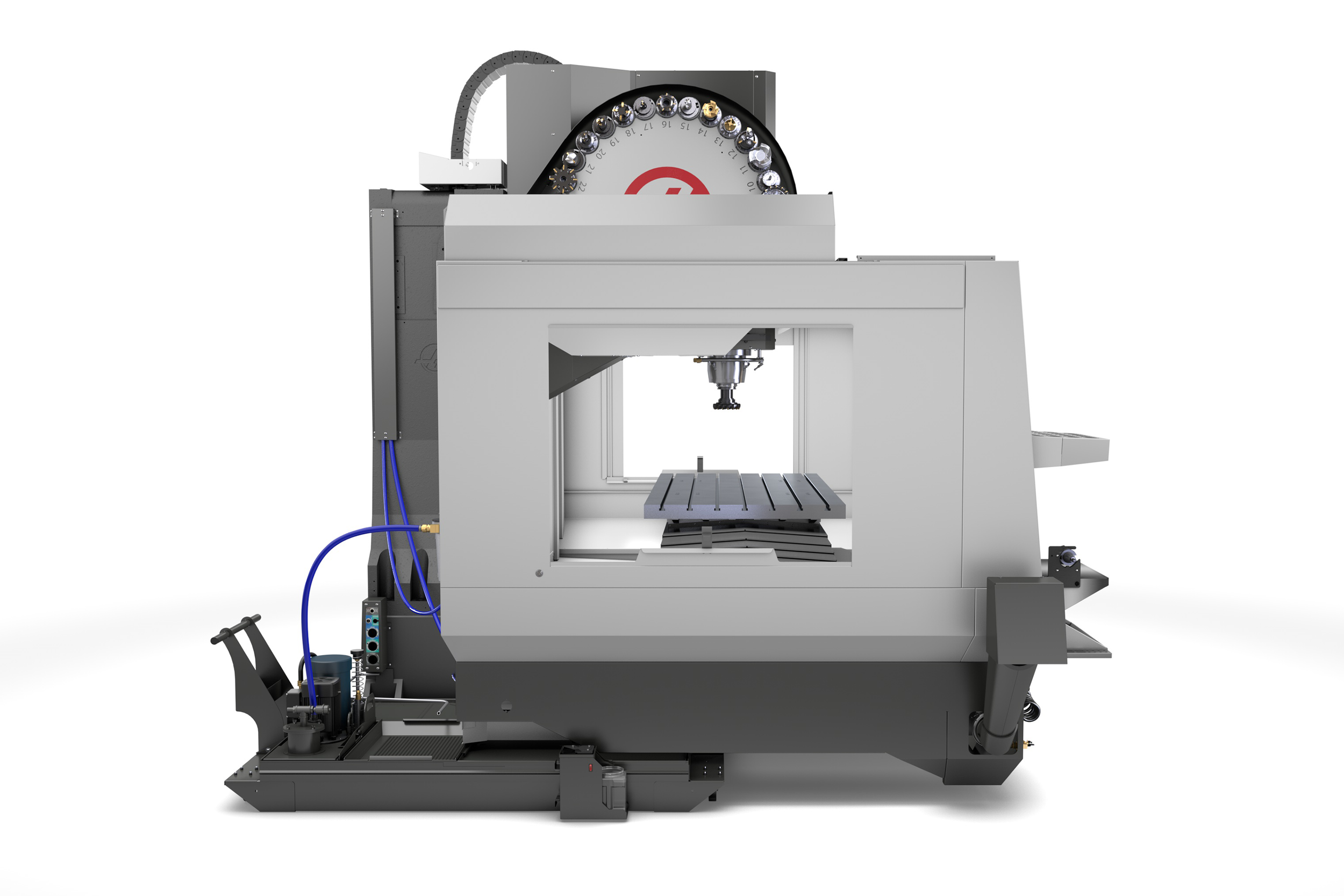

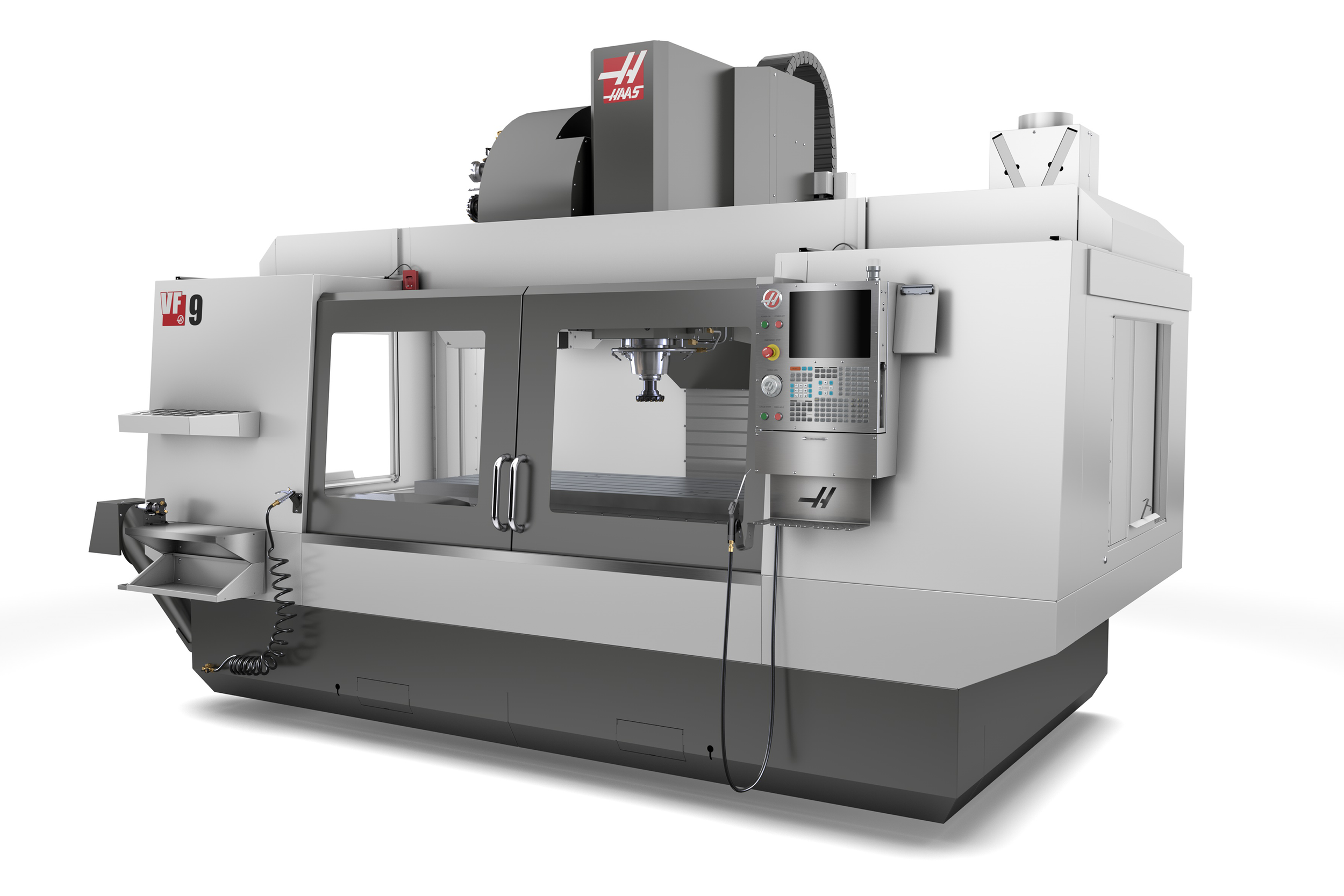

Every VF Series vertical machining center provides outstanding features at an excellent price, and offers a wide range of available options to customize your machine to your exact needs. All Haas machines are designed and built in Oxnard, California, USA.

50-taper spindle with 2-speed gearbox

Customizable to your needs

Ideal for tougher materials and larger-diameter cutting tools

Made in the USA

TRAVELS S.A.E METRIC

X Axis 84.0 in 2134 mm

Y Axis 40.0 in 1016 mm

Z Axis 30.0 in 762 mm

Spindle Nose to Table (~ max) 35.0 in 889 mm

Spindle Nose to Table (~ min) 5.0 in 127 mm

SPINDLE S.A.E METRIC

Max Rating 30.0 hp 22.4 kW

Max Speed 7500 rpm 7500 rpm

Max Torque 340.0 ft-lbf @ 700 rpm 460.0 Nm @ 700 rpm

Drive System 2-Speed Gearbox 2-Speed Gearbox

Taper CT or BT 50 CT or BT 50

Bearing Lubrication Air / Oil Injection Air / Oil Injection

Cooling Liquid Cooled Liquid Cooled

TABLE S.A.E METRIC

Length 84.0 in 2134 mm

Width 36.0 in 914 mm

T-Slot Width 0.626 in to 0.630 in 15.90 mm to 16.00 mm

T-Slot Center Distance 4.92 in 125 mm

Number of Std T-Slots 7 7

Max Weight on Table (evenly distributed) 4000 lb 1814 kg

FEEDRATES S.A.E METRIC

Max Cutting 500 ipm 12.7 m/min

Rapids on X 600 ipm 15.2 m/min

Rapids on Y 600 ipm 15.2 m/min

Rapids on Z 600 ipm 15.2 m/min

AXIS MOTORS S.A.E METRIC

Max Thrust X 3400 lbf 15124 N

Max Thrust Y 4100 lbf 18238 N

Max Thrust Z 5600 lbf 24910 N

TOOL CHANGER S.A.E METRIC

Type SMTC SMTC

Capacity 30+1 30+1

Max Tool Diameter (full) 4.0 in 102 mm

Max Tool Diameter (adjacent empty) 10.0 in 254 mm

Max Tool Length (from gage line) 16 in 406 mm

Max Tool Weight 30 lb 13.6 kg

Tool-to-Tool (avg) 4.2 s 4.2 s

Chip-to-Chip (avg) 6.3 s 6.3 s
