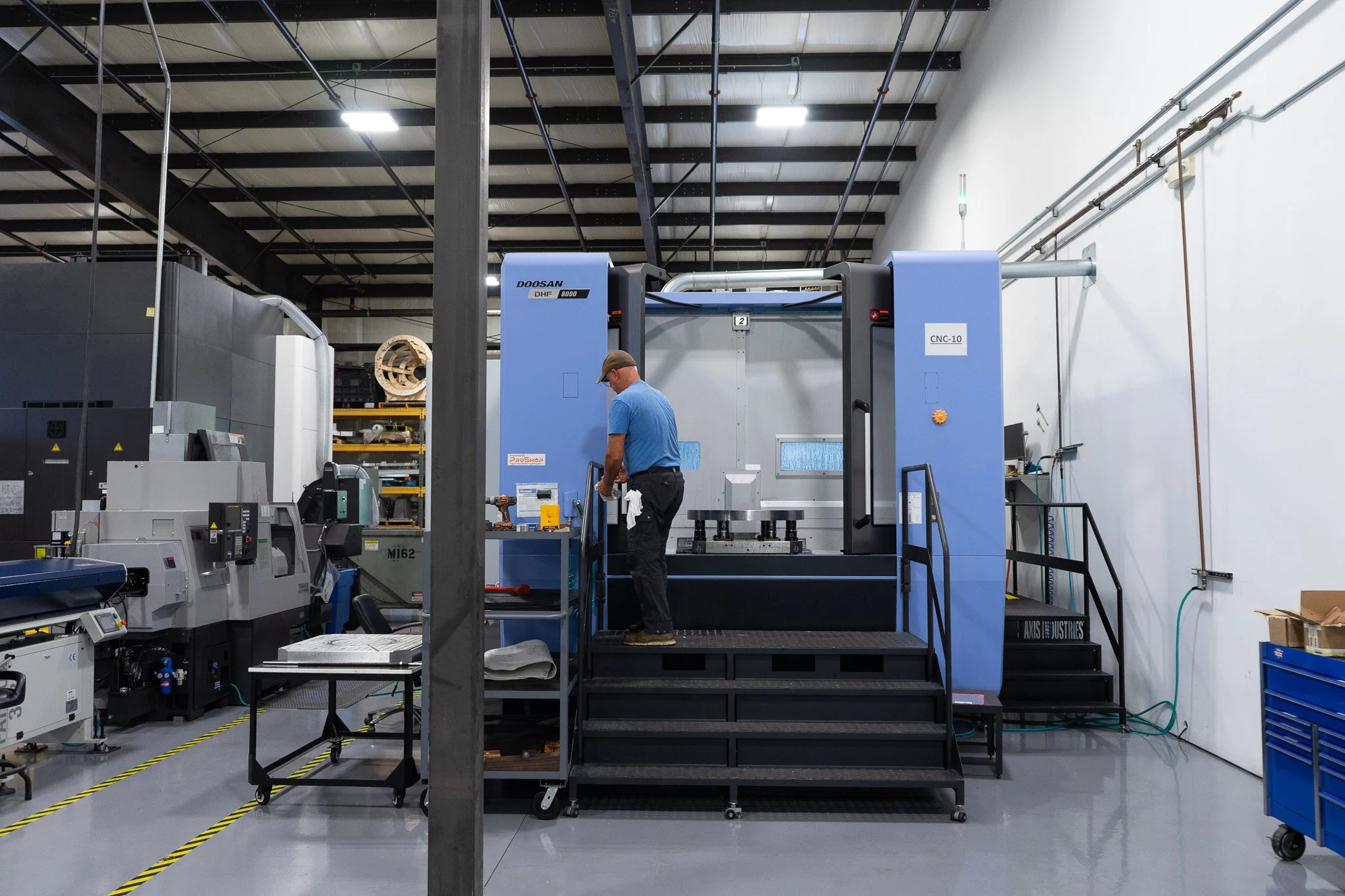

When we work with larger, complex parts such as turbine cases, the DHF 8000 horizontal machining center is a large and capable twin-pallet option for simultaneous 5-axis machining needs.

The nodding head A-axis spindle and B-axis rotary table allow the DHF 8000 to handle a full range of machining processes. This configuration makes quick work of the 5-axis simultaneous machining of complex shapes.

The DHF features dual ball screws for extra rigidity. That nodding A-axis spindle. Linear scales for incredible accuracy and an expandable tool magazine for the machining of complex parts that require a whole bunch of tools.

TRAVELS

X Axis Travel 57.1"

Y Axis Travel 47.2"

Z Axis Travel 59.1"

FEEDRATES

X Axis Rapid Traverse 1,575 ipm

Y Axis Rapid Traverse 1,575 ipm

Z Axis Rapid Traverse 1,968 ipm

Cutting Feedrate .04 - 787 ipm

TABLE

Rotary Table Diameter 31.5"

Maximum Table Capacity 4,409 lb

Maximum Workpiece Size 55.1 x 55.1" (H)

TOOL CAPACITY

Number of Tools STD 120

Number of Tools OPT 1 150

Number of Tools OPT (Matrix) 196 - 376

SPINDLE

Spindle Taper CAT50

Spindle Power 29.5 / 46.9 hp

Spindle RPM 6,000 RPM

Spindle Torque 708 ft-lb

Nodding A Axis +60 deg to -100 deg

Power Transmission Type Gear Driven
